Cartoners

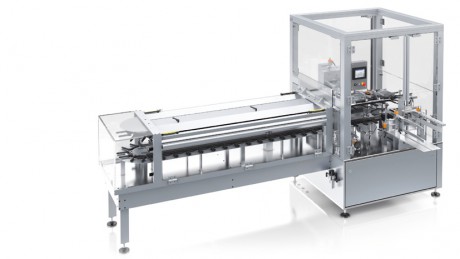

<1>VERTICAL CARTONING MACHINE – VI 5 & VC 5 – UP TO 120 CARTONS/MIN.

Highly productive, ergonomic cartoner at an affordable cost
This machine with its modularly expandable machine length is ideally designed for a variety of packaging applications.

Benefits:
* Very Fast Format Change
* Easy, repeatable format change
* Rapid change over function due to central height  adjustment of transport system and quick exchangeable  carton buckets via click system
* No adjustment of rails needed in curve
* Working principle: intermittent, vertical
* Open and accessible work area
* Easy to clean
* Touch screen operating panel (HMI)
* Cartoner of various packing application (e.g. bottles, tubes, blister, jars, pouches,  bags etc.)
* Completely servo driven


Technical Data:

Model  VI 5                                     VC 5
Working principle  intermittent                        continuous
Size range – A/B/H (mm)  25-100 / 20-90 / 50-230 25-100 / 20-90 / 50-230
Max. output (cartons/min)  75 120


Products / or any combination of this list:
                                                                             * Tubes
                                                                             * Blisters
                                                                             * Vials
                                                                             * Ampoules
                                                                             * Pouches, bottles, sachets
                                                                             * Trays
                                                                             * Spoons
                                                                             * Cannulas
Carton Characteristics / Carton Qualities:
On the cartoning machines all carton qualities as per DIN 53121 with paper weights of 250-500g/qm can be processed, also recycling qualities are applicable.
Dimensions and tolerances of the pre-glued carton should be according to DIN 55222.



<2>HORIZONTAL CARTONING MACHINE

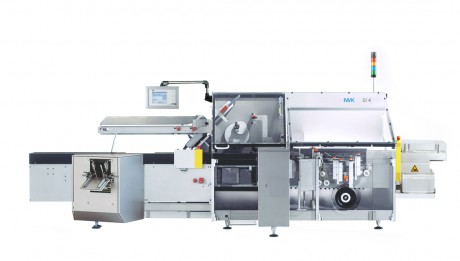

 2.1    SI 4/6/8 – UP TO 80 CARTONS/MIN:

At outputs of up to 80 cartons per minute, the SI 4/SI 6/SI 8 intermittent cartoning machines are the perfect supplement for appliances in the lower performance range.

The intermittent working principle is suitable for basic product feeding systems. Positive carton opening by levers and stationary counter suction (cups) and carton set-up kinematics.



Benefits:

                * Design and machine functions meeting the requirements of the pharmaceutical industry.

                * Simple and tool-free size changeover

                * Use of the servo drive technology for the optimal adaptation of machine functions to the packaging process requirements

                * Centralized Touch Screen with 3D visualization

                * Ideal access for cleaning and maintenance

                * Connection to SCADA control system

               * Track and Trace Technology

                * Product identification and traceability

Technical Data:

Model SI 4 SI 6 SI 8
Working principle intermittent intermittent intermittent

Size range (mm)
(machine with 3 chains)

A: 20-75
B: 15-75
H: 65-180 		A: 20-125
B: 15-100
H: 65-180 		A: 40-165
B: 40-75
H: 65-185
Size range (mm)
(machine with 4 chains) 		A: 20-75
B: 15-75
H: 65-230 		A: 20-125
B: 15-100
H: 65-230 		A: 40-165
B: 40-75
H: 65-230
Max. output (cartons/min) 80 60

45



 2.2 SI 4/6/8 – UP TO 80 CARTONS/MIN:

The compact cartoning machine SC/SI 5 was specifically designed for applications in the pharmaceutical and cosmetics industry for low and medium machine outputs up to 100 respective, 200 cartons/min. The modular machine design allows an easy integration of additional functions and therefore guarantees the optimal adaption to changing packaging process requirements. Intermittent or continuous working principle. Cartons positively opened by levers and stationary counter suction (cups) and carton set-up kinematics. Options: All mentioned standard and special functions possible.

Benefits:

                 * Optimized for  the requirements of the pharmaceutical industry

                 * Short and space saving footprint

                 * Easy, reproducible and nearly tool-free size changeovers

                 * Servo drive technology

                 * Centralized Touch Screen with 3D visualization

                 * Ideal access for cleaning and maintenance

                 * Connection to SCADA control system

                 * Track and Trace Technology

                 * Product identification and traceability

Technical Data:

Model SC 5 SI 5
Working principle continuous intermittent

Size range (mm)
(machine with 4 chains)

A: 20-100
B: 15-100
H: 65-230 		A: 20-100
B: 15-100
H: 65-230
Max. output
(cartons/min) 		200 100

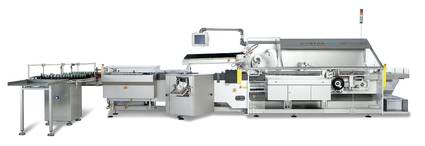

2.3  SC 4/6/8 – UP TO 450 CARTONS/MIN.

Universal continuous motion cartoning machine primarily for applications in the health care and cosmetics industry with an output rate up to 450 cartons/min.

Cartons are positively opened by levers and stationary counter suction (cups) and carton set-up kinematics.

Benefits:

               * Design and machine functions meeting the requirements of the pharmaceutical industry

               * Simple and tool-free size changeover

               * Use of the servo drive technology for the optimal adaptation of machine functions to the packaging process requirements

               * Centralized Touch Screen with 3D visualization

               * Ideal access for cleaning and maintenance

               * Connection to SCADA control system

               * Track and Trace Technology

               * Product identification and traceability

Technical Data:

Model SC 4 SC 6 SC 8
Working principle continuous continuous continuous

Size range – A/B/H (mm)
(machine with 2 chains)

20-75 /15-75/50-85 20-125/15-110/50-85 -

Size range – A/B/H (mm)(machine with 3 chains)

20-75/15-75/65-180 20-125/15-110/65-180 40-165/40-75/65-185

Size range – A/B/H (mm)(machine with 4 chains)

20-75/15-75/85-230 20-125/15-110/85-230 40-165/40-75/65-230
Max. output (cartons/min) 450 300 150

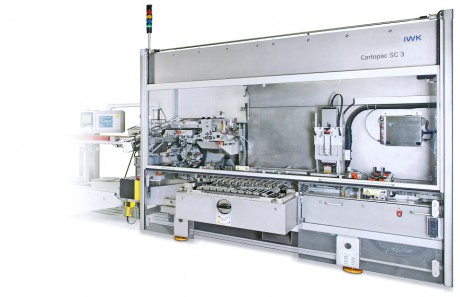

 2.4  SC 3 / SC3-800 – UP TO 800 CARTONS/MIN.

The continuous motion cartoner model SC 3 / SC 3-800  at output rates of up to 600 / 800 cartons/ min. is the high-performance solution and the ideal downstream equipment to the TFS 80-6 / 8 tube filling machine widely used in the toothpaste packaging industry.



Benefits:

                 * Lowered product chain for the safe and positive tube transfer from the TFS 80-6 / 8 high-end tube filling machine

                    * Use of servo motor drive technology throughout with optimal adaptation of the individual machine functions to the requirements of the packaging process

                    * Centralized Touch Screen with 3D visualization

                    * Ideal access for cleaning and maintenance

                    * Connection to SCADA control system

                    * Track and Trace Technology

                    * Product identification and traceability

Technical Data:

Model SC 3-800 SC 3

Working principle

continuous continuous

Size range (mm)
(machine with 4 chains)

A: 25-46
B: 20-36
H: 105-205 		A: 25-55
B: 20-45
H: 105-230
Max. output (cartons/min) 800 600
